Lifting Guide Rail Kanggo Lift

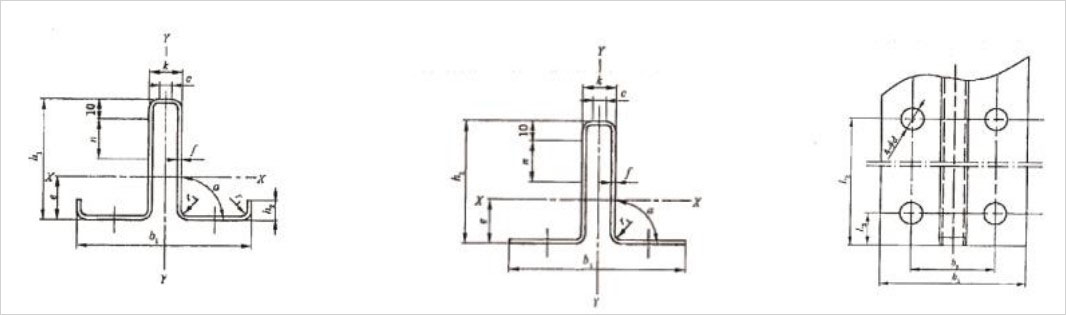

| Model | b1 | h1 | k | n | f | g | c |
| T70/B | 70 | 65 | 9 | 34 | 8 | 6 | 6 |
| T75/B | 75 | 62 | 10 | 30 | 9 | 7 | 8 |
| T78/B | 78 | 56 | 10 | 26 | 8.5 | 6 | 7 |
| T82/B | 82.5 | 68.25 | 9 | 25.4 | 8.25 | 6 | 7.5 |
| T89-1 | 89 | 62 | 16 | 32 | 9 | 7 | 8 |
| T89/B | 89 | 62 | 16 | 34 | 11.1 | 7.9 | 10 |
| T90/B | 90 | 75 | 16 | 42 | 10 | 8 | 10 |
| T114/B | 114 | 89 | 16 | 38 | 11 | 8 | 9.5 |
| T127-1/B | 127 | 89 | 16 | 45 | 11 | 8 | 10 |
| T127-2/B | 127 | 89 | 16 | 51 | 15.9 | 12.7 | 10 |
| T140-1/B | 140 | 108 | 19 | 51 | 15.9 | 12.7 | 12.7 |
| T140-2/B | 140 | 102 | 28.6 | 51 | 17.5 | 14.5 | 17.5 |
| T140-3/B | 140 | 127 | 31.75 | 57 | 25.4 | 17.5 | 19 |
| Model | b1 | c | f | h1 | h2 | k | n |
| TK3 | 87±1 | ≥1.8 | 2 | 60 |
| 16.4 | 25 |
| TK5 | 3 | ||||||
| TK3A | 78±1 | ≥1.8 | 2.2 | 60 | 10±1 | 16.4 | 25 |
| TK5A | 3.2 |
1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail
3.Customized Elevator Guide Rail
4. Kothong Elevator Guide Rail
5. Cold digambar elevator guide ril fishplates, machined elevator guide ril fishplates, fishplates kekandelan khusus, T bagean fishplates, palsu klip, ngusapake Clamps, ngusapake klip, T-klip.
6. Standar: ISO 7465.
7.Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
8.Packing: Rel guide kita dikempalken ing buntelan, karo tutup protèktif ing loro ends, lan saben mbendel wis dikempalken karo sheeting plastik. Kita uga bisa ngemas miturut syarat sampeyan.
9.We bisa nyedhiyani ril guide account kayata MARAZZI, etc.
Rel guide elevator minangka trek sing aman kanggo lift munggah lan mudhun ing hoistway, supaya mobil lan counterweight munggah lan mudhun ing sadawane. Rel panuntun nyambungake piring lan krenjang rel pandhuan menyang tembok hoistway kanggo menehi tuntunan kanggo mobil lift lan counterweight. Fungsi dhukungan saka caliper safety nalika rem minangka bagéyan penting saka sistem elevator. Rel pandhuan sing umum digunakake ing elevator yaiku rel pandhuan sing bentuke "T". Fitur kayata rigidity kuwat, linuwih dhuwur, safety lan biaya murah. Bidang rel panuntun kudu lancar, tanpa permukaan sing ora rata. Wiwit rel pandhuan minangka rel anter jemput saka sepatu panuntun lan peralatan safety ing mobil elevator, reresik kudu dipesthekake nalika instalasi. Ing wektu sing padha, ril panuntun kudu tanggung jawab kanggo mandhegake lift nalika lift ngalami kacilakan kacilakan, saengga kaku ora bisa diabaikan.
Rel panuntun lift dipérang dadi: rel panuntun padhet lan rel panuntun hollow counterweight.
Rel panuntun padhet minangka rel panuntun mesin, sing dibentuk kanthi mesin permukaan pandhuan lan nyambungake bagean profil rel pandhuan. Tujuane kanggo menehi pandhuan kanggo operasi mobil lift sajrone operasi lift. Rel guide ngalangi cilik uga digunakake kanggo panuntun counterweight. Ana akeh specifications guide alur ngalangi miturut jembaré saka lantai alur guide, kang bisa dipérang dadi T45, T50, T70, T75, T78, T82, T89, T90, T114, T127, T140, etc.

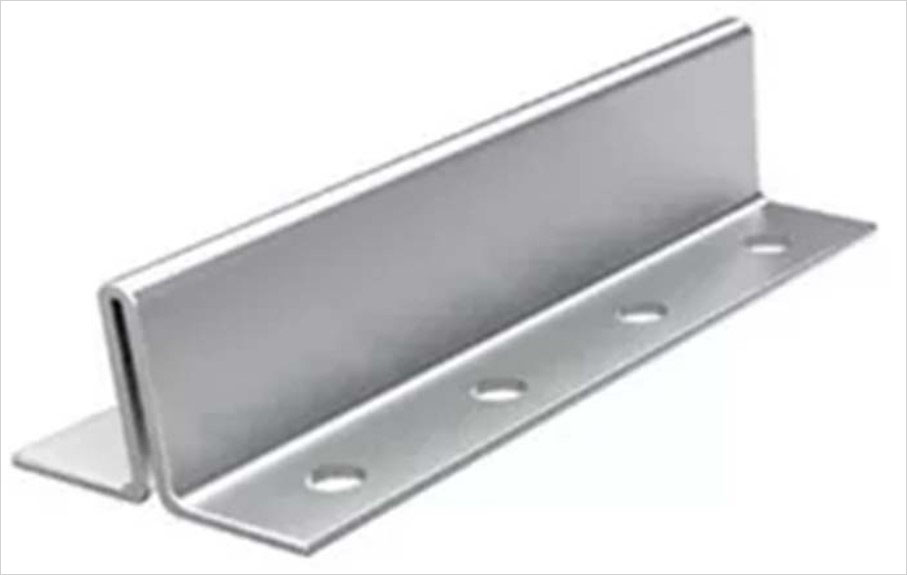

Rel panuntun kothong counterweight minangka rel pandhuan rolling sing digawe adhem kanthi kekandelan 2.75mm lan 3.0mm. Lagi kadhemen-kawangun saka piring coiled liwat cetakan multi-pass. Utamane digunakake kanggo menehi panuntun dhumateng counterweight sajrone operasi elevator. Rel guide berongga bisa dipérang dadi sisih lurus lan sisih flanged miturut wangun lumahing mburi ril guide, yaiku TK5 lan TK5A.
